VARIABLE COILS
BOBBIN TYPE

SCOPE

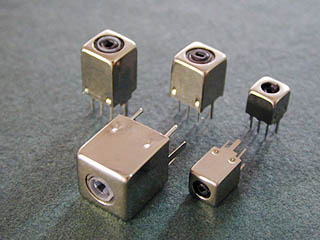

These bobbin type variable coils operate over a wide range of frequencies. Their molded slotted bobbin assure tight tolerance. Optional plated brass shield cans cutting machine with solderable tabs provide integral shielding and additional mounting stability.

FEATURES

Excellent coupling and distributed capacitive stability EMI Filters by adopting separate winding construction
Complete customer specification design

SELECTION GUIDE FOR STANDARD

TO VIEW *.PDF FILES, CLICK ON "Acrobat Reader Version 4.0 "

These series variable coils come in six different styles. Please consult this table for each style you need.
Series	L. Range	Freq. Range	Optional Int.	Remark
Number	(µH)	(MHz) Min.	Cap. (pF)	¡@
5HL	0.08 - 1.0	30 - 150	Not available	5 mm, Low profile
5HH	0.05 - 10	30 - 150	Not available	5 mm
7HL	0.03 - 20	2 - 120	5 - 120	7 mm, Low profile
7HM	0.1 - 50	2 - 150	5 - 120	7 mm
7HH	0.03 - 82	2 - 150	5 - 120	7 mm
10HM	0.08 - 82	2 - 150	5 - 120	10 mm
* The electrical ranges as shown above is for reference only. MDNCOIL would design and manufacture modified and custom coil with specified characteristics to meet your requirements.
