VARIABLE
COILS
DRUM-CUP
TYPE |
|
SCOPE
These

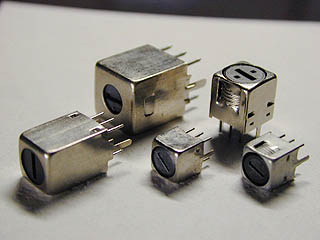

drum-cup type variable coils
designed for a wide range of
inductance. Which is allowing
the use of larger drum core
and cup core to provide the
superior high inductance and
greatly improves saturation
levels. |
|
FEATURES
- The
high inductance range makes
these series suitable for
low frequency application.
- Complete
customer specification design
|
| SELECTION
GUIDE FOR STANDARD |
| TO
VIEW *.PDF FILES, CLICK
ON "Acrobat
Reader Version 4.0 "
|
 |
|
|
These
series variable coils
come in five different
styles. Please consult
this table for each
style you need. |
|
Series
|
L. Range |
Freq.
Range |
Optional
Int. |
Remark |
|
Number |
(µH) |
(MHz)
Min. |
Cap.
(pF) |
|
SB02
(5LL) |
1 -
680 |
0.2
- 15 |
5 -
56 |
5 mm,
Low profile |
SB04
(5LM) |
1 -
680 |
0.2
- 15 |
5 -
56 |
5 mm |
SB06
(7LM) |
1 -
15000 |
0.2
- 15 |
5 -
390 |
7 mm,
Low profile |
SB08
(7LH) |
1 -
20000 |
0.2
- 20 |
5 -
390 |
7 mm |
SB10
(10LM) |
1 -
20000 |
0.2
- 20 |
5 -
390 |
10 mm |
|
* The
electrical ranges as
shown above is for reference
only.
MDNCOIL would design
and manufacture modified
and custom coil with
specified characteristics
to meet your requirements. |
|
|
 |
